4 up thermal CTP

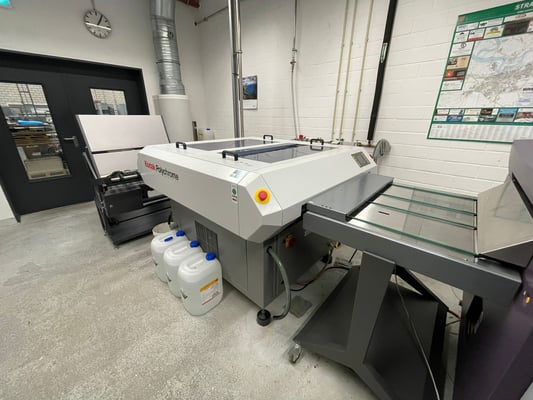

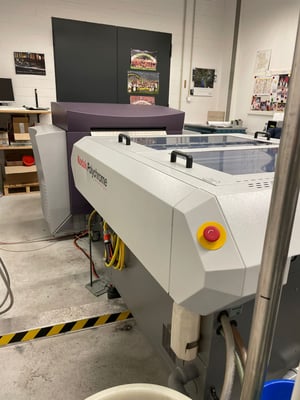

Kodak Magnus 400 S.
4up CTP
IALDA laser head 2019 (no thermal head)
Year: 2008 (Refurbished by Kodak in 2009)
Plate counter reading 27,371
Current error: Plates are loaded incorrectly / registration is incorrect
Incl. dongle, Prinergy Evo RIP, Windows XP computer
Minimum panel format: 311 x 228 mm
Maximum panel format 680x750 mm
approx. 16 plates / h

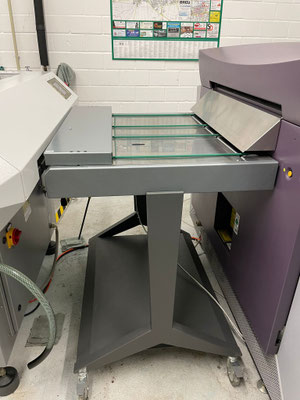

+ Kodak Magnus 400 Conveyor
Load manually
Calculator including KODAK Preps
HP xw4600 Workstation
Windows XP Professional 2002
Intel® Core ™ 2 Duo CPU E8500 @ 3.16 GHz
3.48 GB of RAM
Kodak Preps 5.3

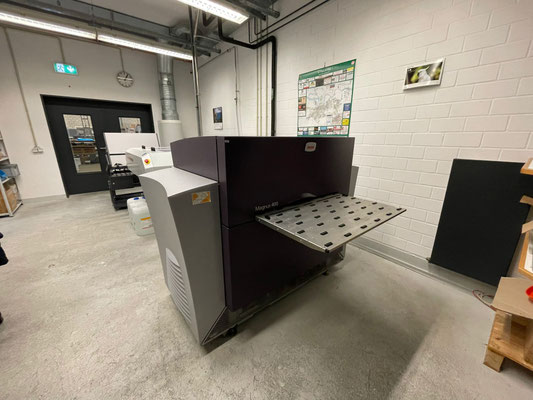

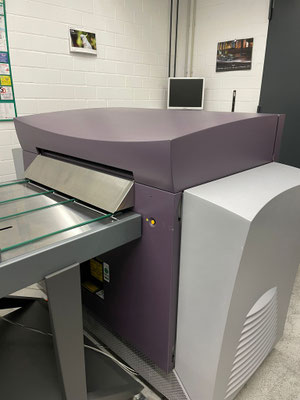

Kodak Mercury MK6 850
Year: 2005 (general overhaul 03/2009 by Kuhnen Media GmbH)
Plate count: 22,977

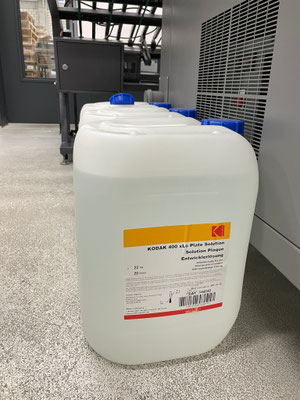

3x 20L KODAK 400 xLo Plate Solution developer solution
Maximum panel width: 850 mm
Minimum panel length *: 620 mm
* with middle developer rollers 320 mm (available)
Plate thickness: 0.152 - 0.5 mm
Water connection: ¾ “BSP
Water pressure: Min. 1.4 bar / Max. 3 bar // Min. 21 PSI / Max 45 PSI
Waste water: 1 1/2 "
Development tank capacity: 43 L.
Rinsing tank capacity: 33 L
Gumming tank capacity: 5 L.

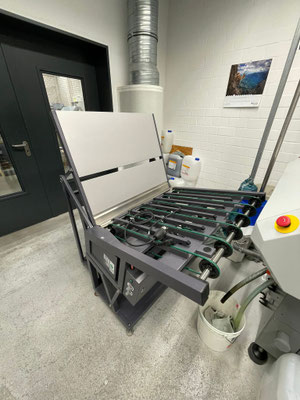

Huq Plate Stacker 860 Compact
Model CSG-86C
Year: 2009
Pickup only!
Package Price: on request
